QJ/QJR type well/terrestrial heat submersible electric pump

Product  introduction:
        QJ type well submersible electric pump is a kind of water-lifting machine with submersible motor and submersible pump integrated directly into one set,working deep into the water. It is mainly used in the feeding and draining engineering of farmland irrigation, city,industrial and mine establishments.
        QJR type geothermal submersible electric pump can be used in the exploitation of underground hot water with a temperature under 100℃, featuring heat-resising, corrosion resistance, anti-aning,etc.


Discharge capacity:  2—1000m3/h      Lift head: 10m—1000m
Motor power: 0.55KW—600KW           Rated voltage: 380V/660V

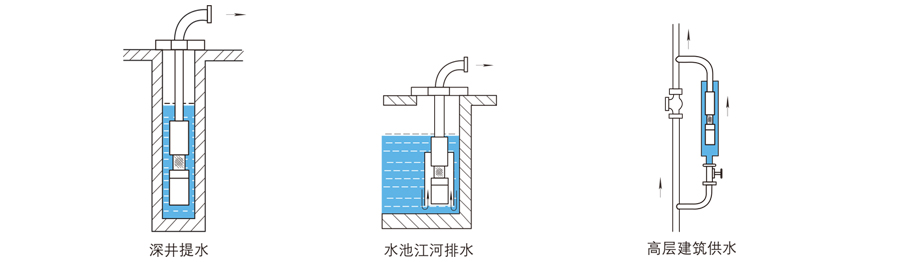

Main  Application:

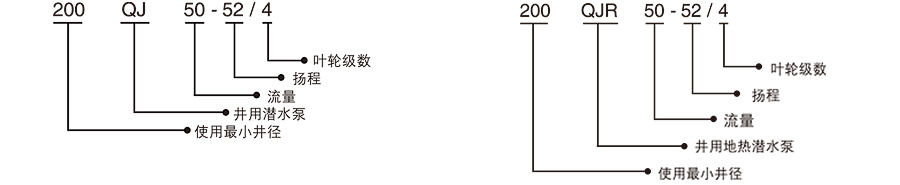

Demonstration of the type:





Structure  explanation:









基本参数表下载: QJ/QJR型井用/耐高温潜水电泵.doc
